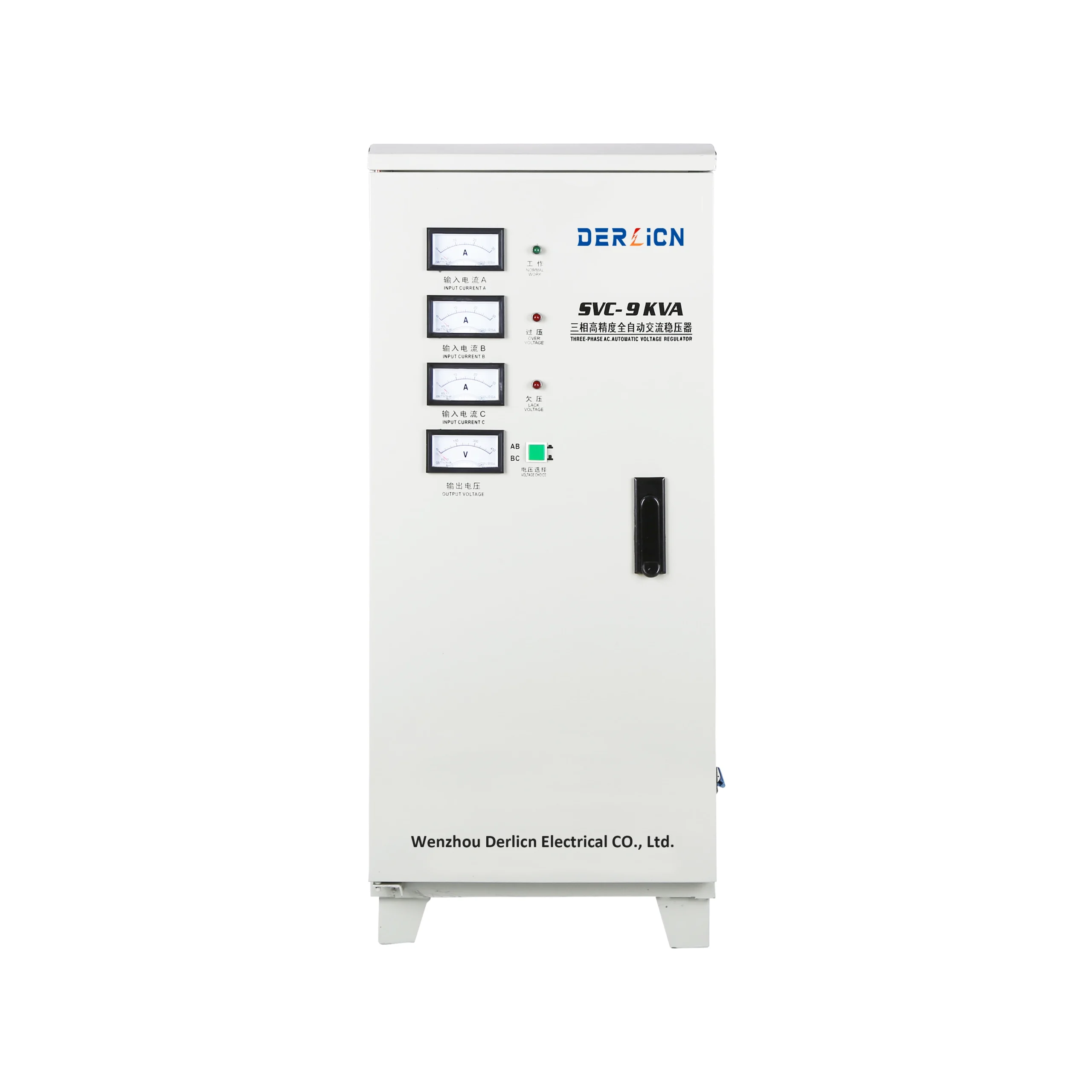

VAS Series Three Phase AC Automatic Voltage Regulator

Categories Other Equipment, Voltage Regulators

Our company produces SVC (VAD) type single-phase, three-phase AC voltage stabilizer is a new generation of energy-saving multifunctional voltage stabilizers developed and produced by the market’s voltage stabilized power supply.

It consists of contact autotransformer, servo motor, automatic control circuit (using large-scale linear logic circuit) and other components. When the grid voltage is unstable or the load changes, the automatic control circuit will drive the servo motor according to the ratio of the output voltage, adjust the position of the carbon brushes on the top of the autotransformer, and stabilize the output voltage at the rated value.

Overview
Technical Parameters

Overview

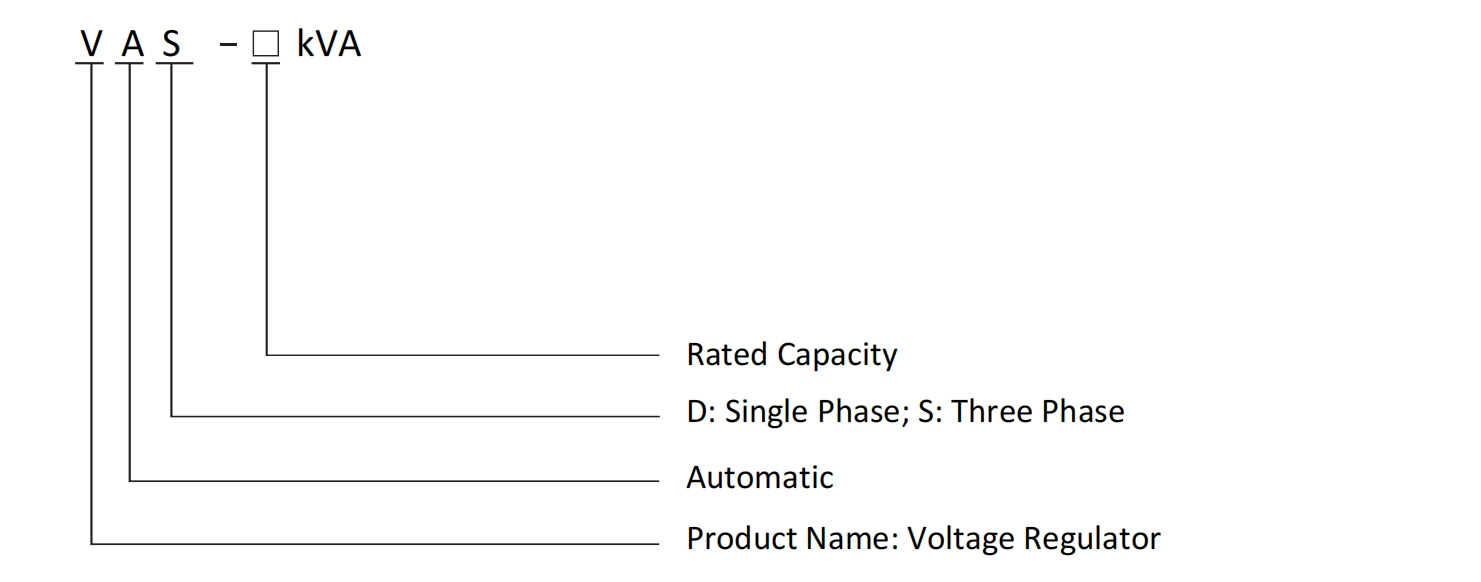

Product Model

Scope of Application

VAD Series Voltage regulator is characterized by beautiful appearance, low power consumption and complete protection functions. It can be widely used in industrial production, scientific research, medical and health care and air conditioning, refrigerators and other household appliances, is a performance, the price is more ideal AC voltage regulator.

Condition of Use

Relative Humidity: Not more than 90%(temperature 25℃);
Ambient Temperature: -5~+40℃;
Rated Voltage Frequence: 50Hz;
Atmospheric Presure: 86~106kPa;
Working Environment: Indoor Without Chemical Deposition, dirt, harmful erosion medium and
flammable and explosive gas. Can work continuously.

Technical Parameters

Model	Capacity	External Dimensions(cm)
VAS(Three Phase) Voltage Regulator	1.5kVA	49×35×17
	3kVA	49×35×17
	4.5kVA	49×35×17
	6kVA	28×33×68
	9kVA	33×33×76
	15kVA	37×43×82
	20kVA	37×43×82
	30kVA	52×43×98

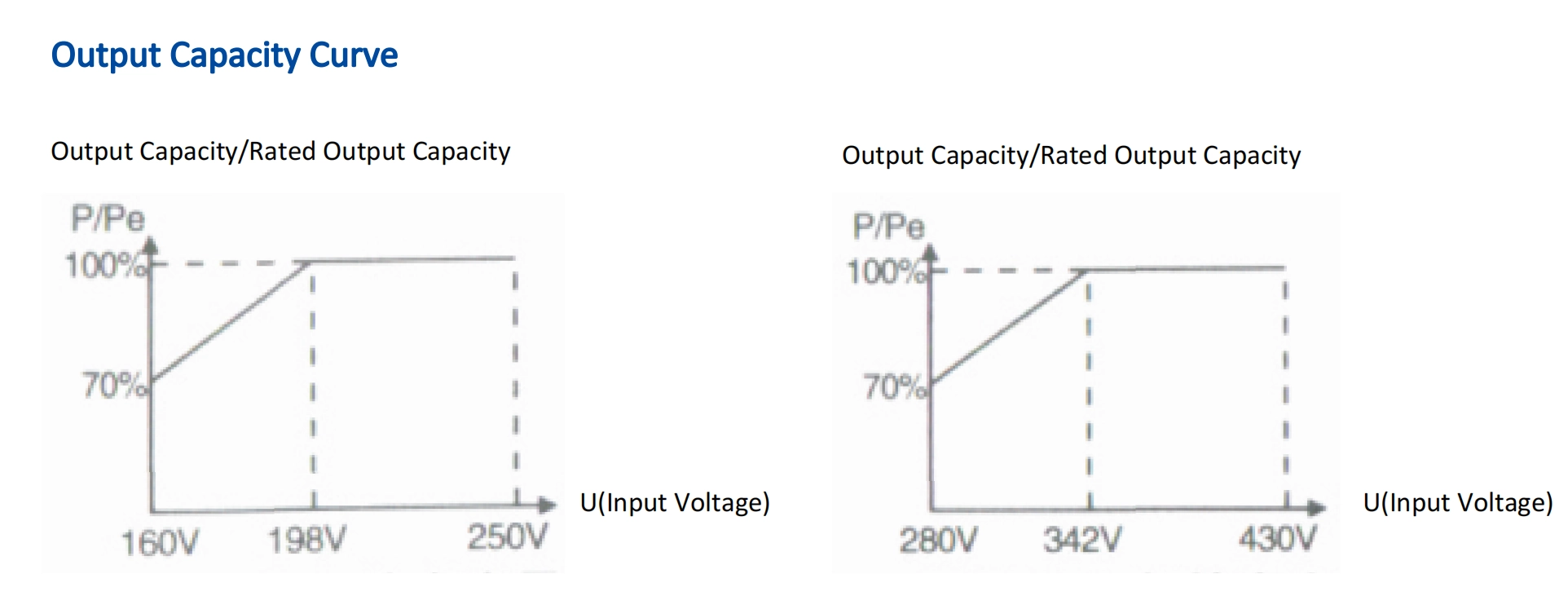

Output Capacity Curve

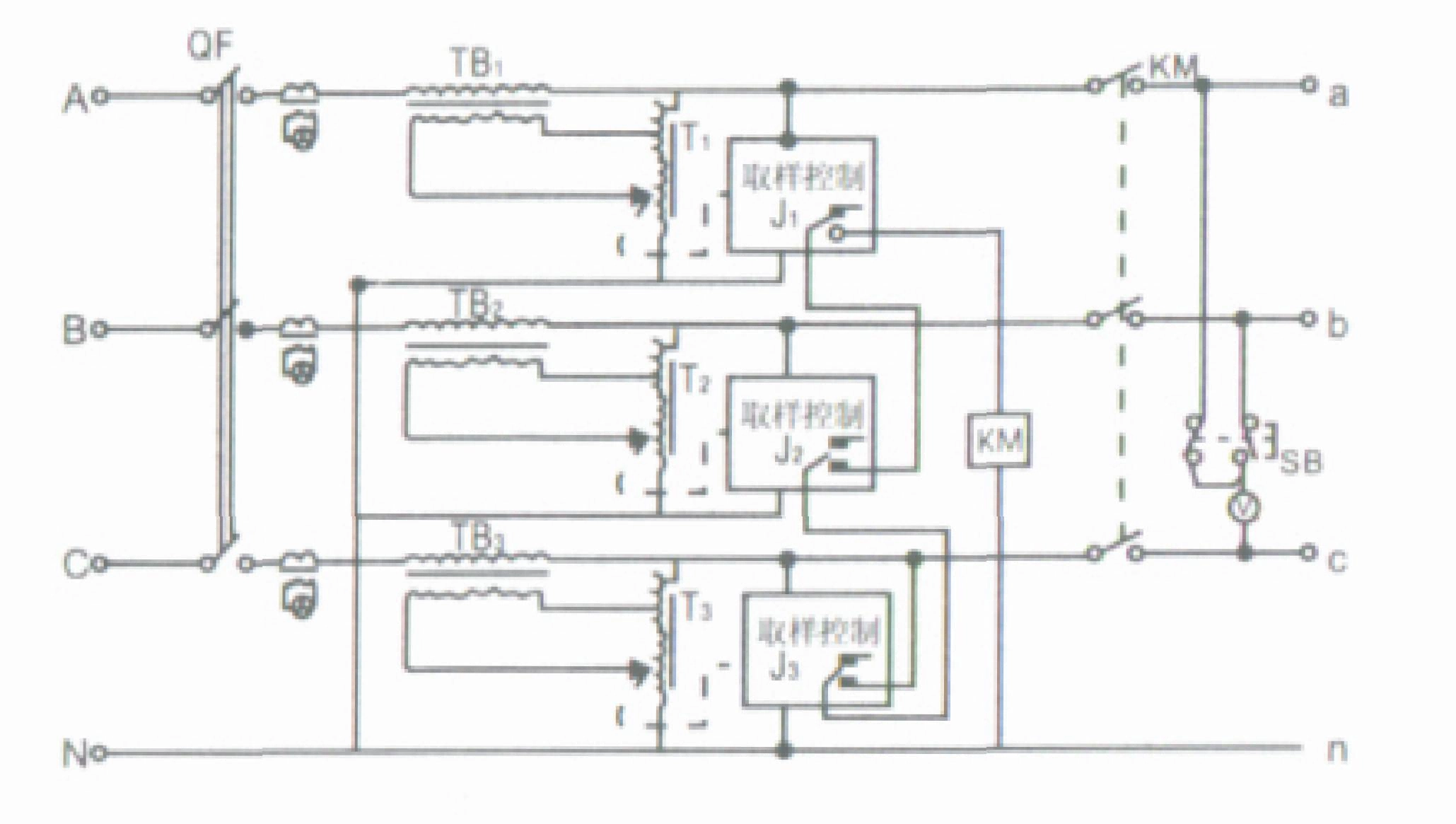

Electrical schematic diagram of 3-phase 30kVA high-precision automatic AC voltage regulator
