FZRN25-12 Series 12kV Indoor Vacuum Load Switch

FZN25,FZRN25 vacuum load switch and composite apparatus,suitable for three-phase AC 50Hz ring network orterminal power supply and industrial electrical equipment,for load control and short circuit protection use,load switchopen and close the closed loop current,no-load transformer and cable charging current,composite apparatus can breakany current till rated short circuit current.
Adopt the straight move or isolating fracture and vacuum interrupter linkage.With function of manual and electricoperation.

Product Description

  • FZN25,FZRN25 vacuum load switch and composite apparatus,suitable for three-phase AC 50Hz ring network orterminal power supply and industrial electrical equipment,for load control and short circuit protection use,load switchopen and close the closed loop current,no-load transformer and cable charging current,composite apparatus can breakany current till rated short circuit current.
  • Adopt the straight move or isolating fracture and vacuum interrupter linkage.With function of manual and electricoperation.
  • FZN25,FZRN25 special transmission structure design,arc extinguish chamber only withstand voltagein the moment ofclosing and breaking,small size,low price.
  • FZN25,FZRN25 can realize isolation fracture and arc extinguish chamber fracture disposable operating.
  • FZN25,FZRN25 has a grounding switch mutual linkage grounding valve between the static contact and movableconductive cylinder,ensures safety and convenient maintenance.
  • Standard:IEC 60265-1,IEC 62271-105.

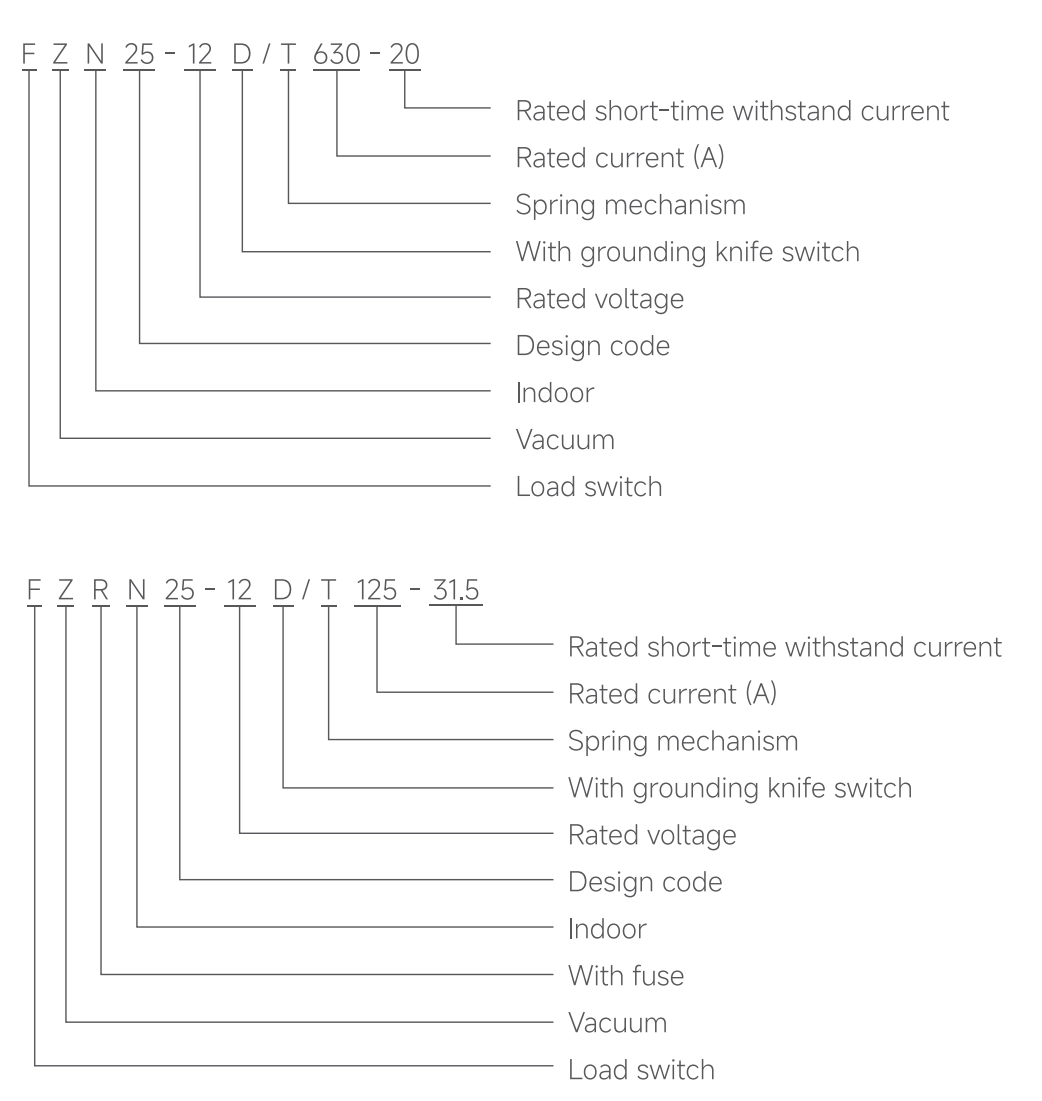

Product Model
FZRN25-12 Series 12kV Indoor Vacuum Load Switch

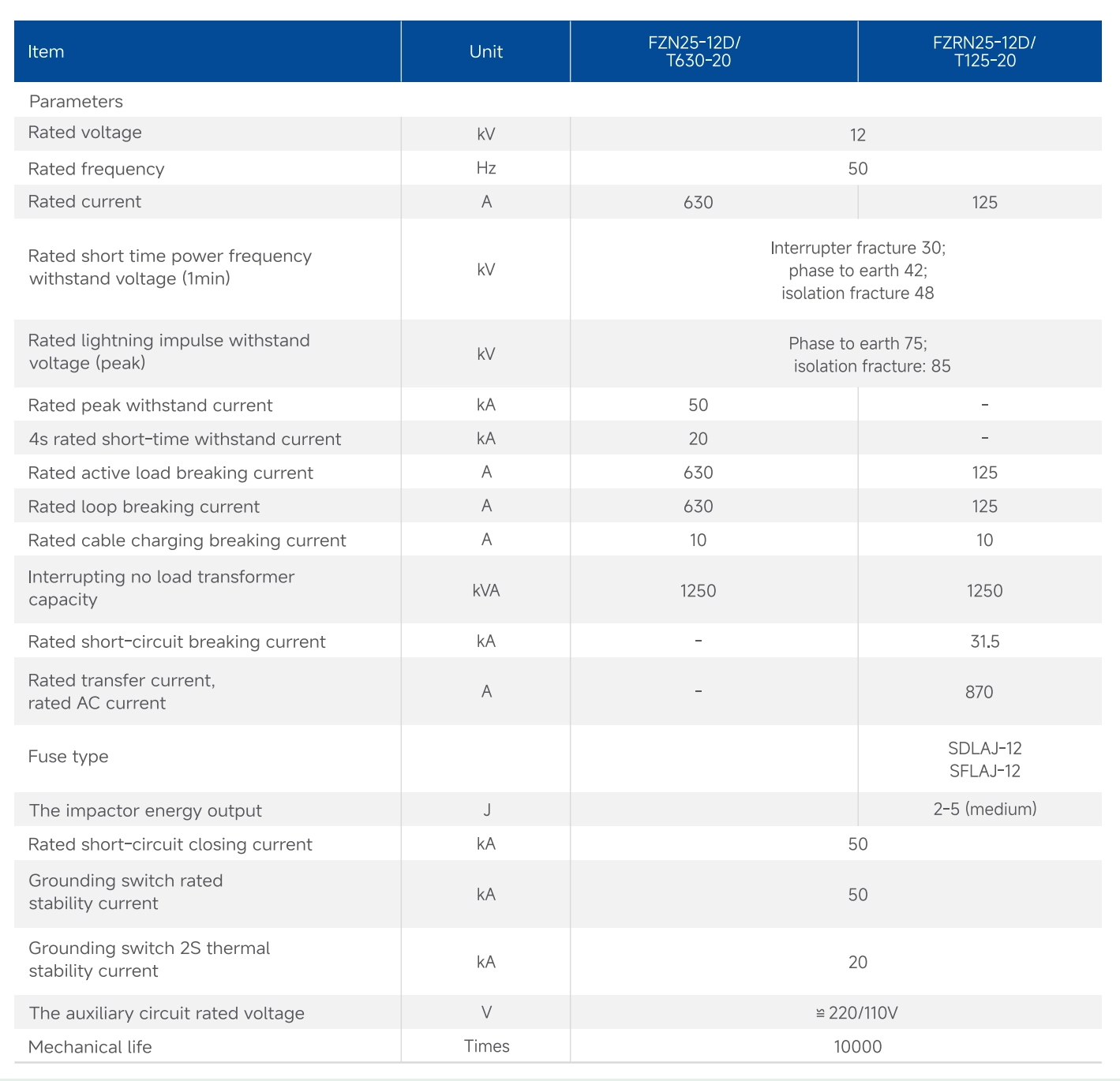

Technical Data

Technical Data of FZRN25-12 Series 12kV Indoor Vacuum Load Switch

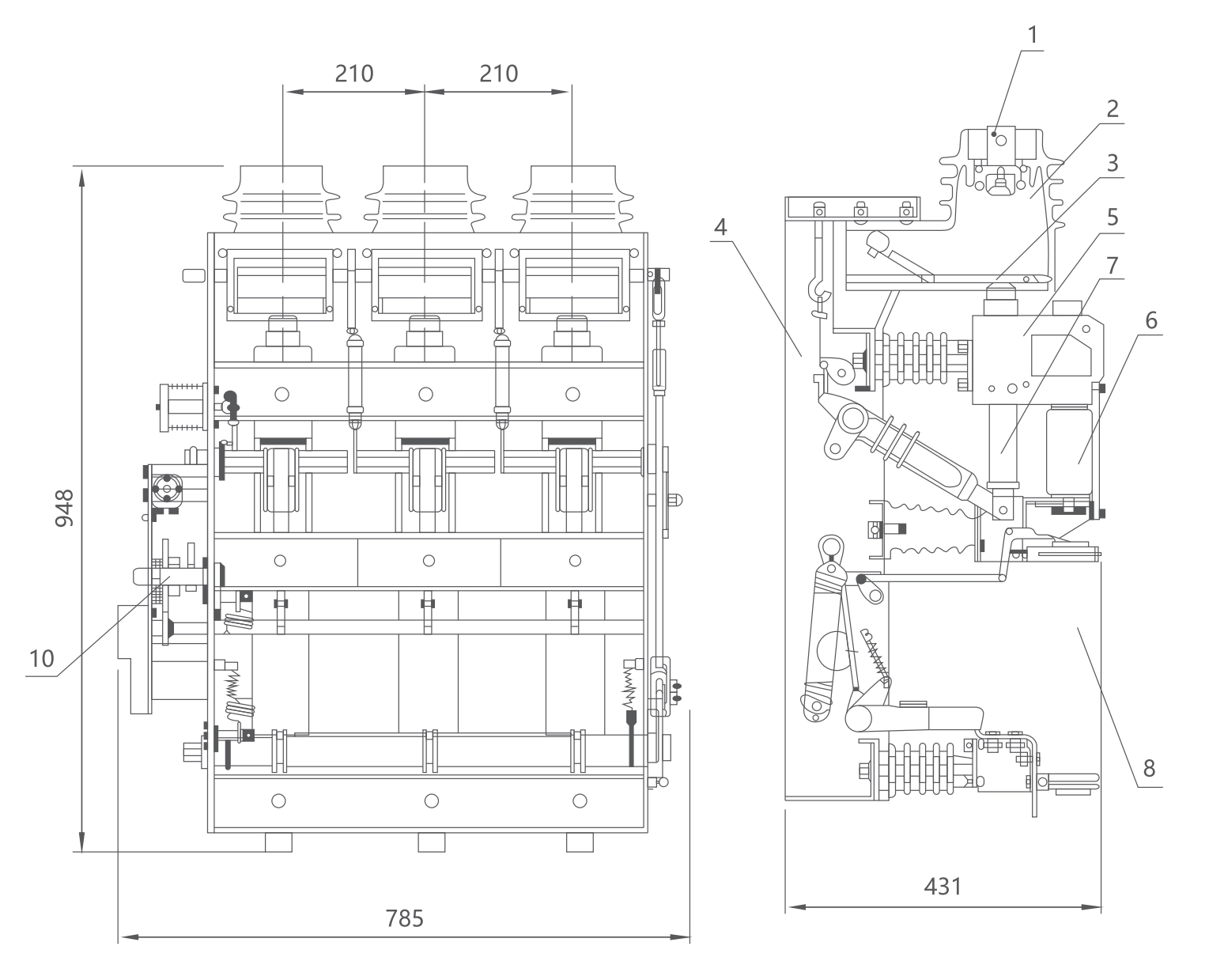

Product Dimension

Product Dimension of FZRN25-12 Series 12kV Indoor Vacuum Load Switch
