Overview
Product Overview

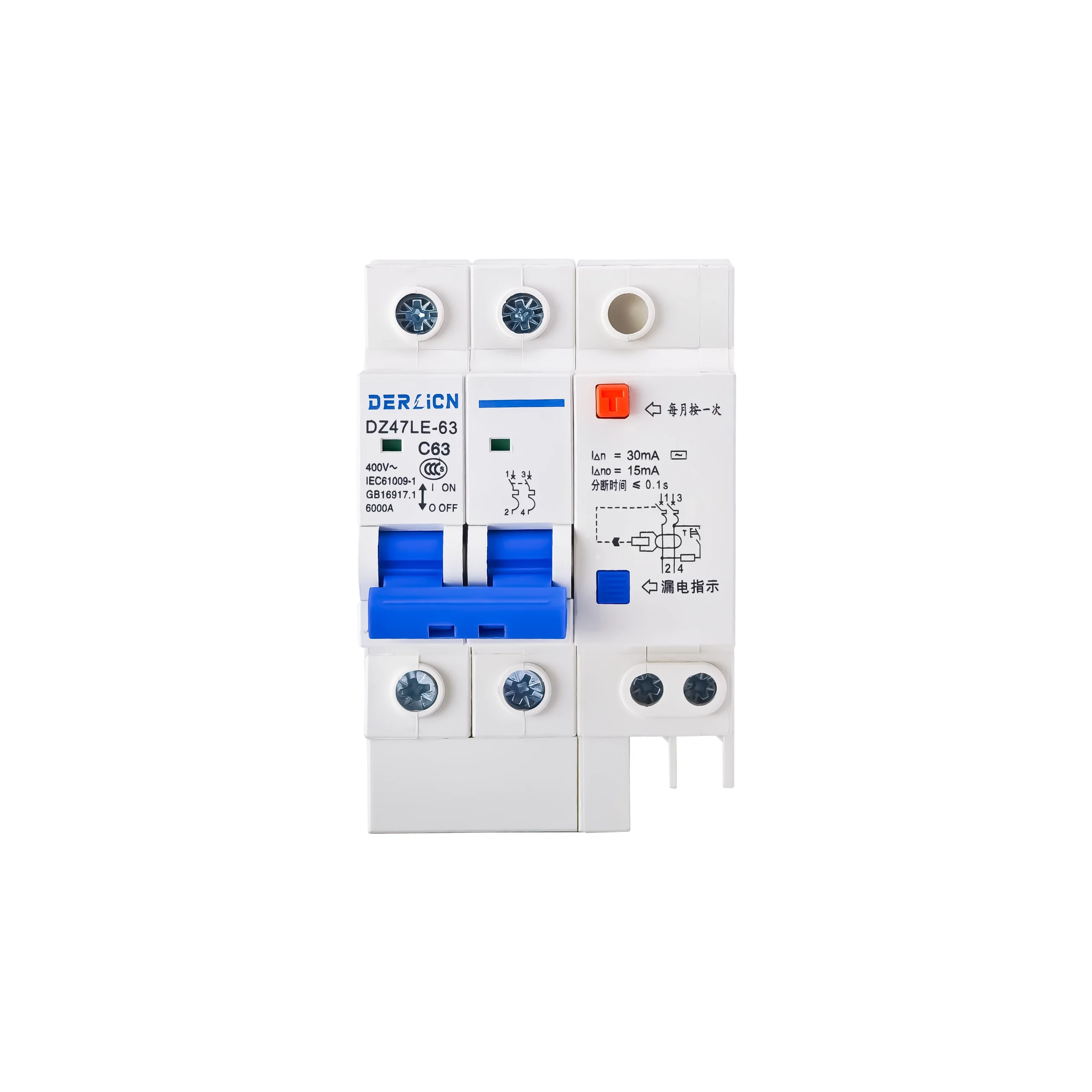

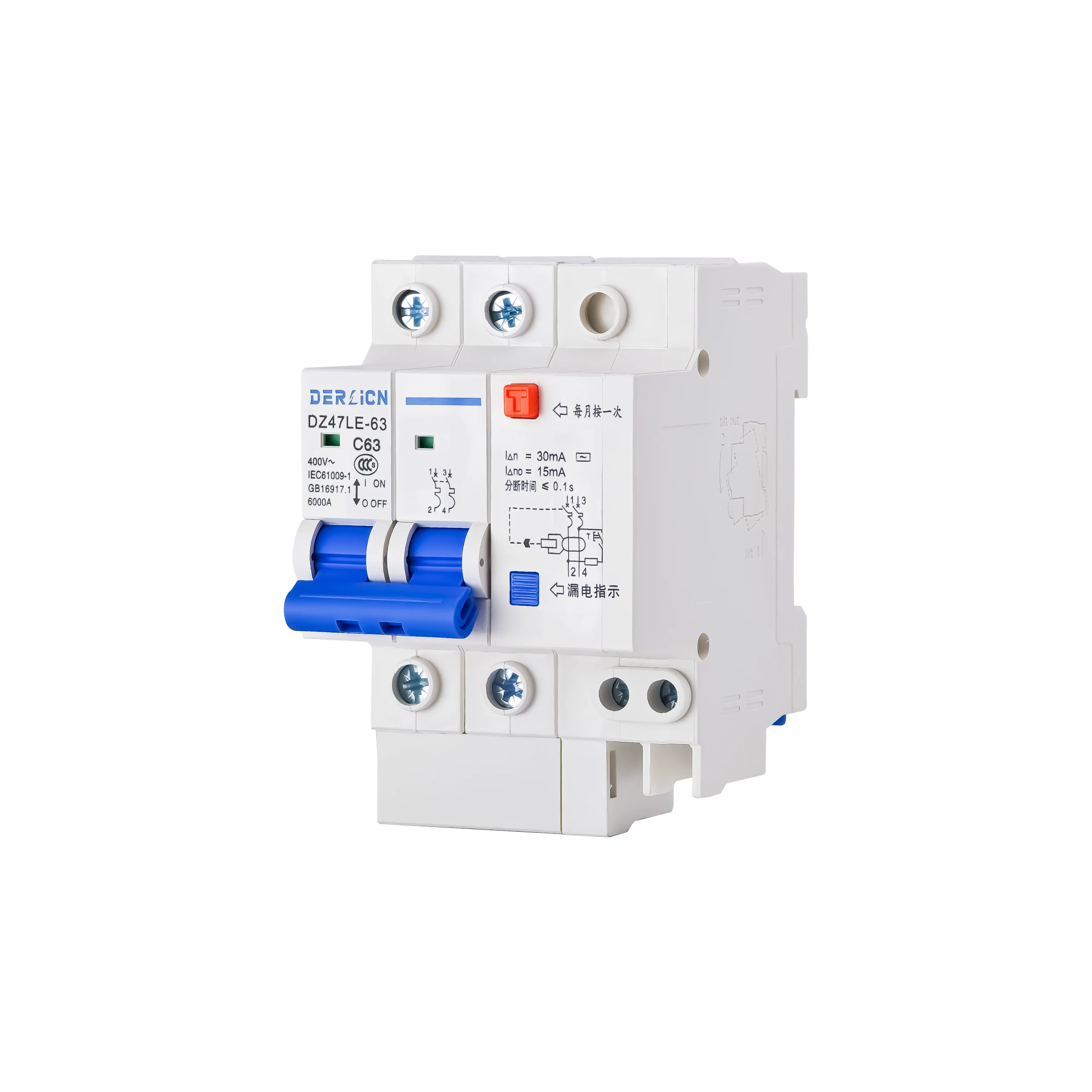

The DZ47LE-63 Series Residual Current Operated Circuit Breaker (RCBO) is designed for residential and light commercial applications. It combines leakage protection, overload protection, and short-circuit protection in one compact device.
This series is suitable for AC 50/60Hz circuits with a rated voltage of 230V or 400V, and a rated current range of 6A to 63A. Multiple pole configurations are available, including 1P+N, 2P, 3P, 3P+N, and 4P, providing flexible protection solutions for single-phase and three-phase systems.
When a leakage current or insulation fault occurs, the DZ47LE automatically disconnects the circuit to prevent electric shock and fire hazards. With its high breaking capacity, fast trip response, and dual protection functions, it ensures reliable safety for homes, offices, and small industrial installations.
Compliant with IEC/EN 61009-1 standards, the DZ47LE is ideal for use in distribution boards, control cabinets, and terminal protection.

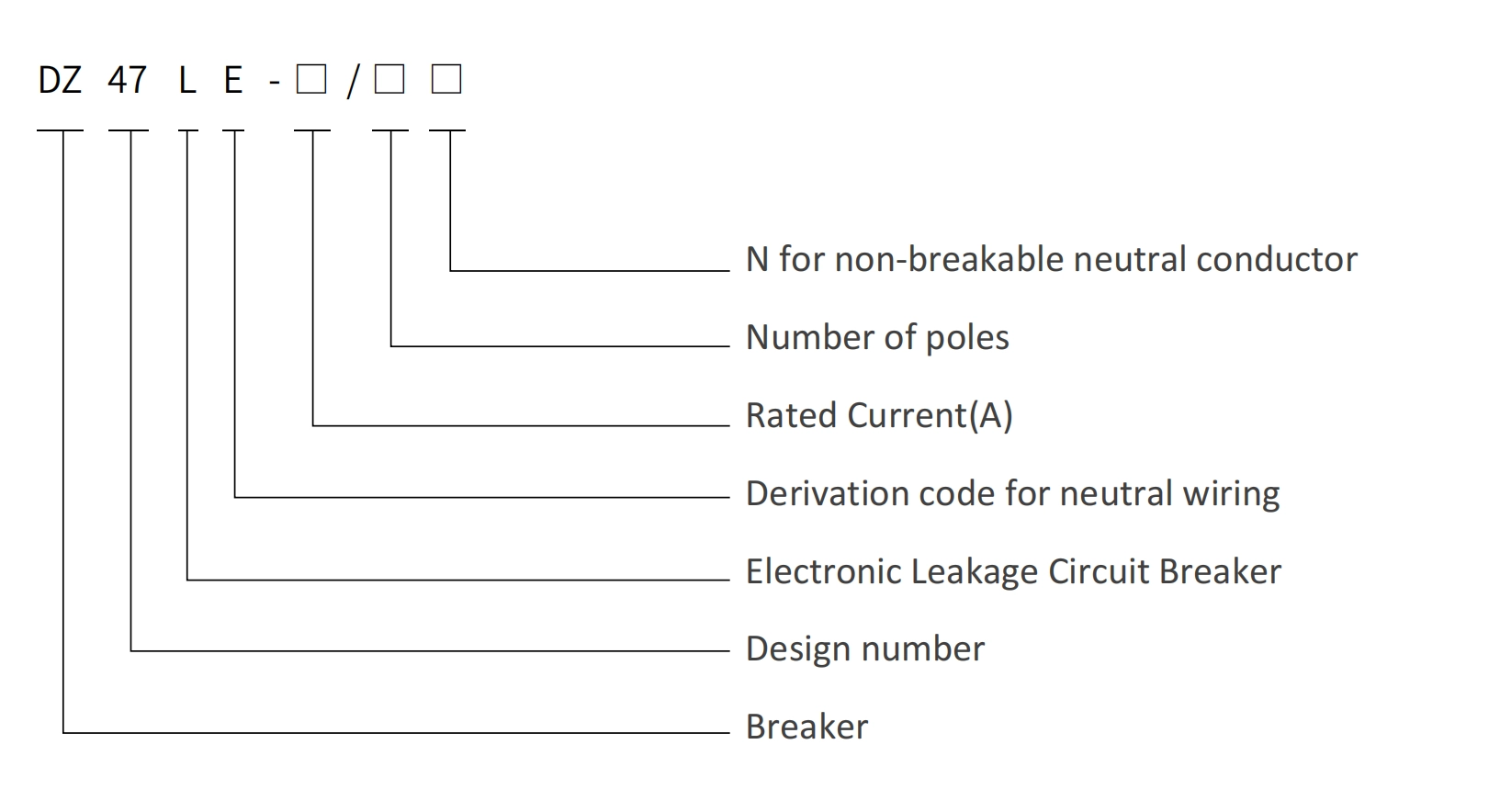

Model of DZ47LE-63 Series Residual Current Operated Circuit Breaker (RCBO)
