Overview
Product Overview

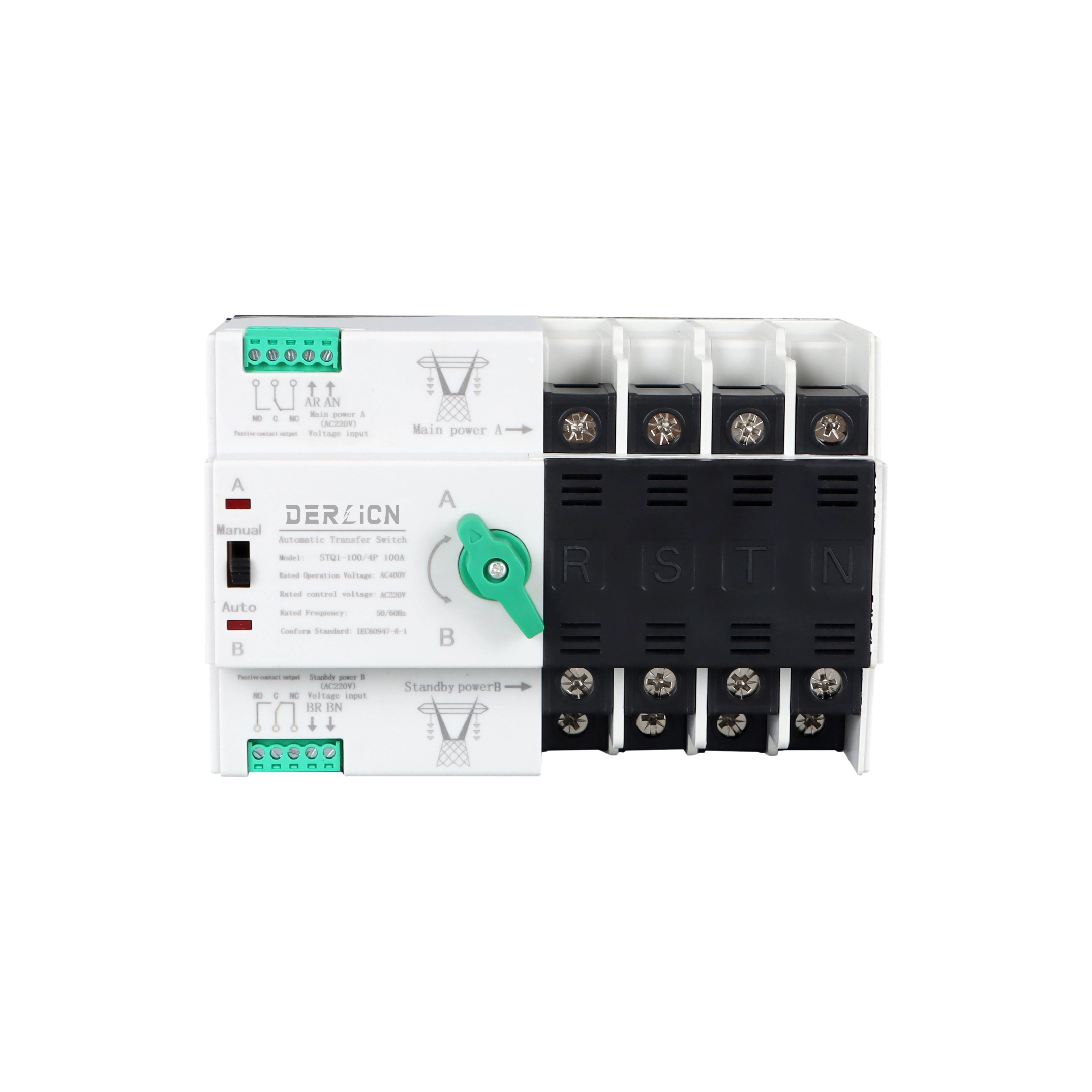

DLQ1 (PC Grade) Excitation Automatic Transfer Switch is a newly developed miniature household power transfer switch.The switch is mainly used to test whether the main power supply or the standby power supply is normal. When the normal power supply is abnormal, the standby power supply will start to work immediately, thus ensuring the continuity, reliability and safety of power supply.
DLQ1 (PC Grade) Excitation Automatic Transfer Switch is suitable for emergency power supply system of 50 or 60Hz, rated 400V AC.
- ATS is characterized by solid construction, reliable conversion, easy installation and maintenance, and long service life.
- It is widely used in a variety of occasions that can not be sustained power outage, that is, reliable power work, but also can be manually operated.
- ATS is composed of TSE and controller.
- It is designed for domestic rail mounting and is specifically used in PZ30 distribution box.
- According to GB/T14048.11, the development of part 6-1: multi-functional equipment and switchgear can be seen ATS is the most compliant with the requirements of low-voltage switchgear and control devices.
Uptime and Installation Conditions
- Surrounding air temperature
The maximum temperature should not exceed 40, the minimum should not be lower than -5℃, and the average temperature in 24h should not be higher than 35℃. - Altitude
The altitude of the installation site should not be higher than 2000m. - Atmospheric conditions
When the maximum temperature reaches 40℃, the relative humidity of the installation site should not be more than 50%; when the temperature is the lowest temperature -5 ℃, the relative humidity is higher, for example: the temperature is 25℃, the relative humidity is 90%. Due to temperature changes, special measures should be taken to deal with occasional condensation on the product surface. - Pollution level
The pollution level of ATS complies with GB/T14048.11 designated level 3. - Installation type
The installation type of ATS is in accordance with the specified category in GB714048.11. - Installation conditions

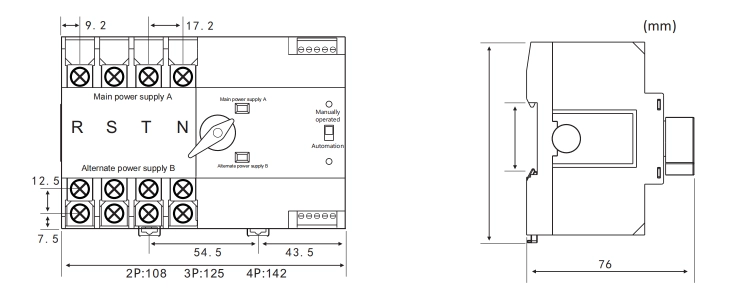

The ATS can be mounted vertically in a control cabinet or distribution cabinet. Ensure that the installation distance meets the requirements in Illustration 1.

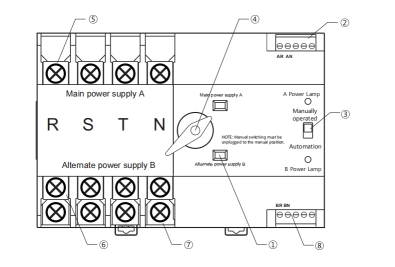

Structural Characteristics
- Control device: built-in controller
- Product structure: uninterruptible, rail-type, high current, small size, two-stage, simple structure, ATS-integrated Features: fast switching speed, low failure rate, easy maintenance, reliable performance

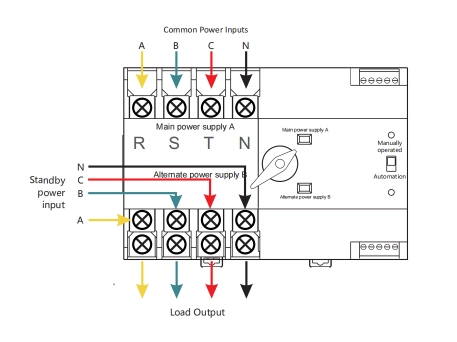

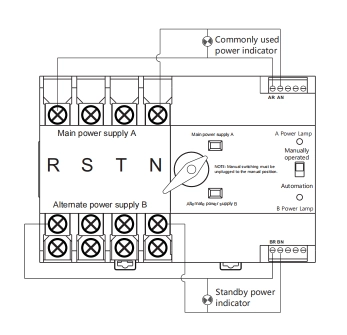

- Wiring mode: wiring in front of the board
- Conversion mode: grid to grid, grid to generator, photovoltaic to utility, self-injection and self-recovery
- Product shell frame: 100
- Product current: 10, 16, 20, 25, 32, 40, 50, 63, 80, 100A
- Product classification: direct load type

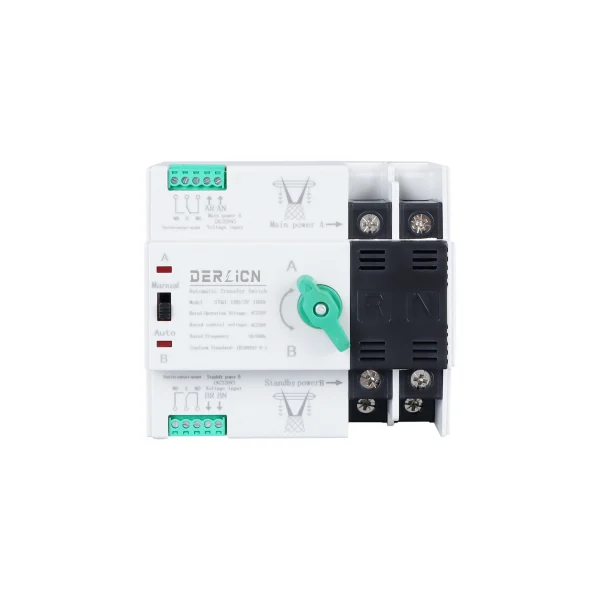

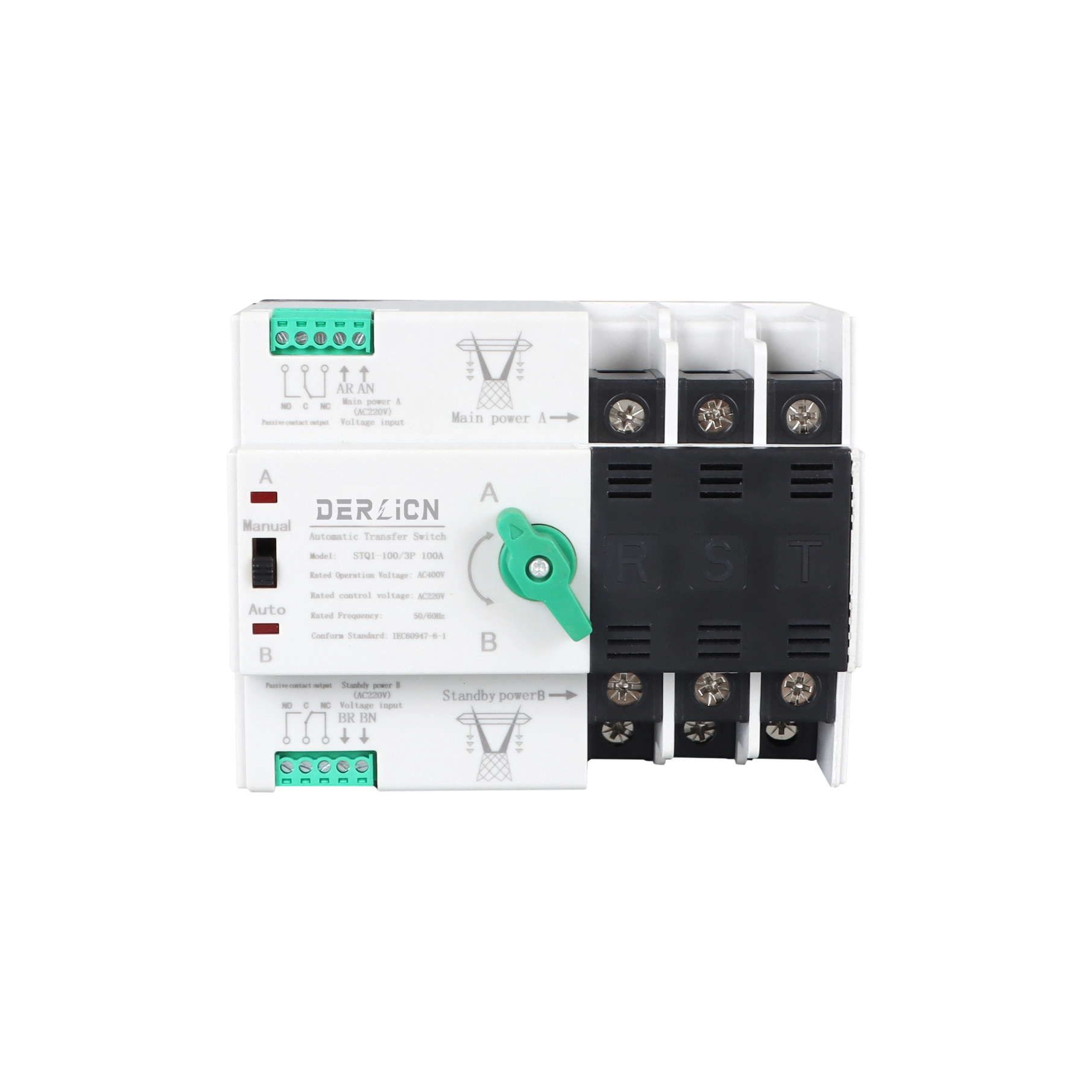

- Number of poles：2、3、4
- Product standard: GB/T14048.11 ATSE: PC grade
- Switching time: 0.008sec/8ms
