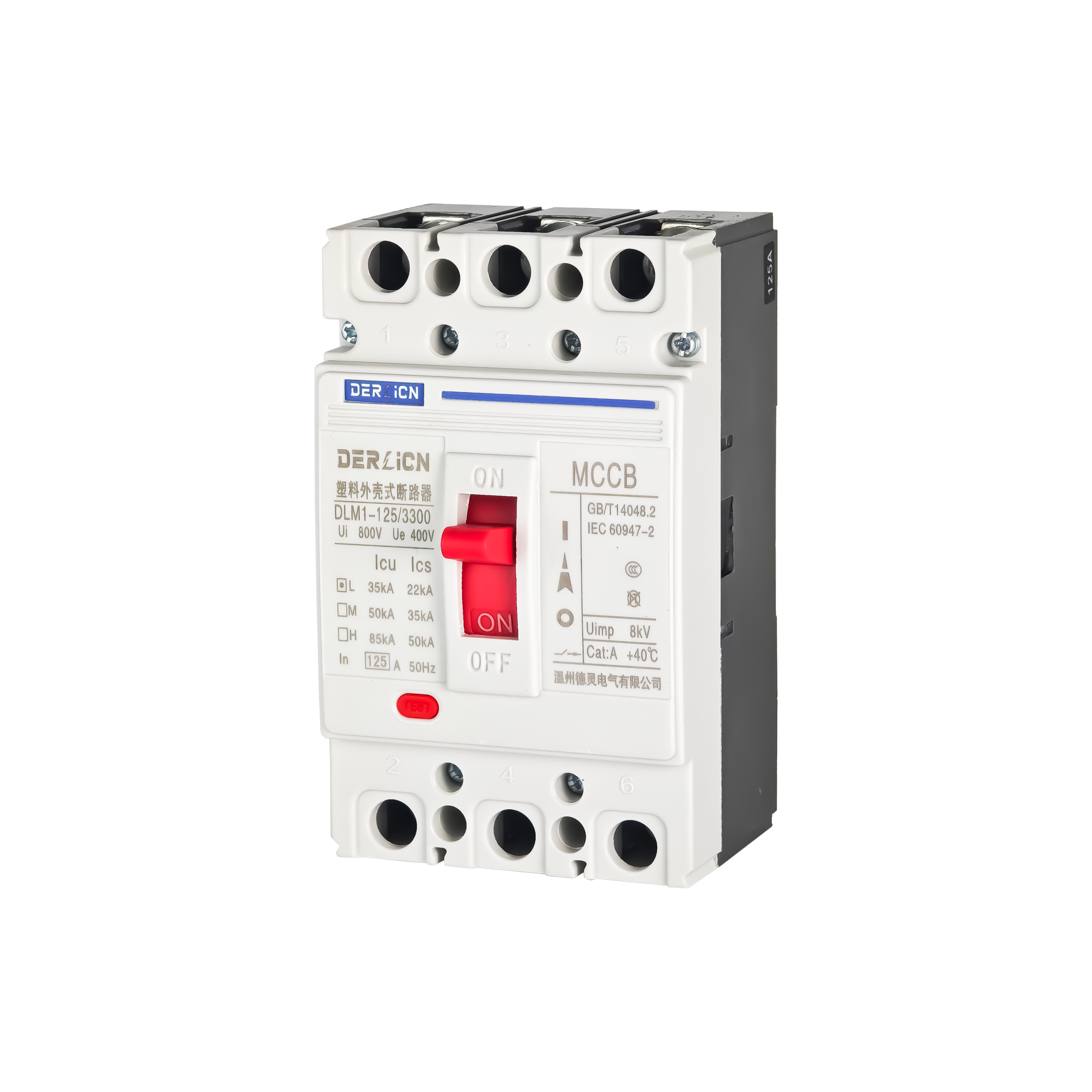

DLM1 series Moulded Case Circuit Breakers (hereinafter referred to as Circuit Breakers) are suitable for use in power distribution networks with AC 50Hz (or 60Hz), rated insulation voltage of 800V, rated working voltage of 690V and below, and rated current up to 1250A, and are used as electrical equipments for distribution of electric energy and protection of overload, under-voltage and shortcircuit protection of wiring and power supply equipments.
The Circuit Breakers with 630A shell frame rating or below can also be used as overload, under-voltage and short-circuit protection of electric motor. The Circuit Breakers can also be used as overload, undervoltage and short-circuit protection for electric motors.
Under normal conditions, they can also be used for infrequent switching of lines and infrequent starting of motors.
According to its rated ultimate short-circuit breaking capacity, the circuit breaker is divided into three types: L-type (standard type), M-type (higher breaking type) and H-type (high breaking capacity type).
DLM1 series Moulded Case Circuit Breakers (hereinafter referred to as Circuit Breakers) are suitable for use in power distribution networks with AC 50Hz (or 60Hz), rated insulation voltage of 800V, rated working voltage of 690V and below, and rated current up to 1250A, and are used as electrical equipments for distribution of electric energy and protection of overload, under-voltage and shortcircuit protection of wiring and power supply equipments.
The Circuit Breakers with 630A shell frame rating or below can also be used as overload, under-voltage and short-circuit protection of electric motor. The Circuit Breakers can also be used as overload, undervoltage and short-circuit protection for electric motors.
Under normal conditions, they can also be used for infrequent switching of lines and infrequent starting of motors.
According to its rated ultimate short-circuit breaking capacity, the circuit breaker is divided into three types: L-type (standard type), M-type (higher breaking type) and H-type (high breaking capacity type).
The Circuit Breaker is characterized by small size, high breaking capacity, short flying arc, anti-vibration and so on.
The Circuit Breaker can be installed vertically (i.e. vertically mounted) or horizontally (i.e. horizontally mounted).
The Circuit Breaker conforms to: IEFC60947-2, GB14048.2 standard.

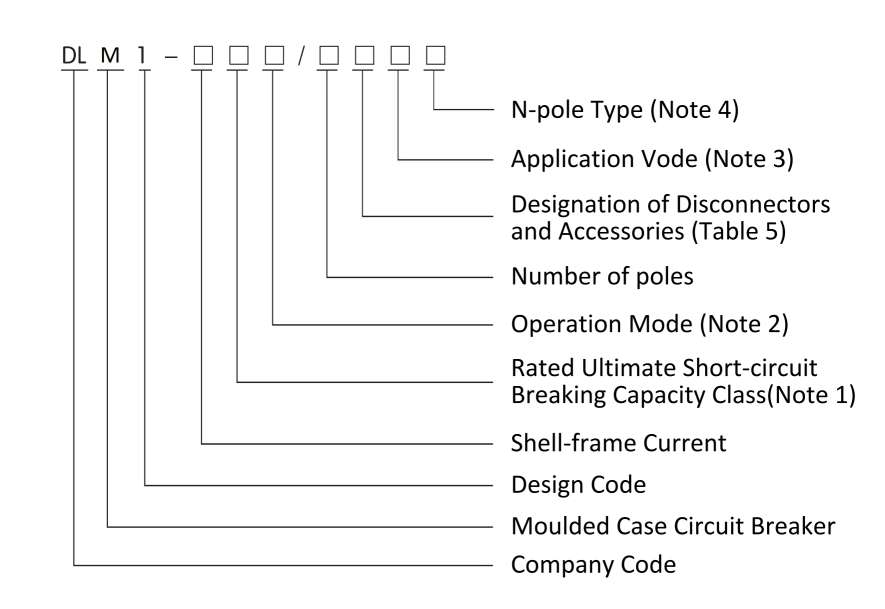

Model
Note:
According to the rated ultimate short-circuit breaking capacity of
the product is divided into: L-type (standard), M-type (higher breaking type), H-type (high breaking type).
No code for handle direct operation; Electric operation is indicated by P; Rotating handle is indicated by Z.
No code for circuit breaker for power distribution; Motor protection is indicated by 2.
According to the number of poles of the product is divided into 3 pole and 4 pole. There are four types of neutral pole (N pole) in four-pole products.
Type A: N-pole is not installed with over-current tripter. and N-pole is always on, not split or closed with other three poles.
Type B: N-pole is not installed with over-current tripter, N-pole and the other 3 poles split or closed together (N-pole first closed and then split).
Type C: N pole is installed with over-current tripter, and N pole is split or closed with other 3 poles (N pole is closed first and then split).
Type D: N-pole is installed with over-current tripter, and N-pole is alwavs on, not split or closed with the other three poles.
The Normal Working Conditions And Installaticn Conditions
Altitude: <2000m;
Maximum inclination is 22.5°;
Ambient temperature: -5℃~ +40℃;
In a medium with no danger of explosion, and the mediumis not sufficiently corrosive;
Withstand the effects of humid air;
Metal and insulation-destroying gases and conductive dust places;
Withstand the effects of salt spray and oil mist;
Where there is no rain or snow intrusion;
Pollution class 3;
Installation category ll.
Technical Parameters
Technical Parameters
Model Number
DLM1-63
DLM1-125
DLM1-250
DLM1-400
DLM1-630
DLM1-800
Electric characteristics as per IEC 60947-2, EN 60947-2
Rated current (A) In 40℃
10, 16, 20, 25, 30, 32, 40, 50, 63
25, 30, 32, 40, 50, 63, 80, 100, 125
100, 125, 140, 150, 160, 175, 180, 200, 225, 250
250, 300, 315, 320, 350, 400
400, 450, 500, 630
630,700,800
Rated insulation voltage (V) Ui
800
800
800
800
800
800
Rated impulse withstand voltage (kV) Uimp
8
8
8
8
8
8
Code for breaking capacity
L
M
L
M
H
L
M
H
L
M
H
L
M
H
L
M
H
Rated ultimate short circuit breaking capacity (kA)
25
50
25
50
85
36
50
85
36
50
85
50
65
100
50
65
100
Rated service short-circuit breaking capacity (kA) 400V/690V
12.5
25
12.5
25
42.5
18
25
42.5
18
25
42.5
25
32.5
50
25
32.5
50
Rated service short-circuit breaking capacity Ics (%lcu)
100%
100%
100%
100%
100%
100%
Cat
A
Poles number
3,4
2, 3, 4
2, 3, 4
3,4
3,4
3,4
Maintainable mechanical life (times)
20000
20000
20000
10000
10000
10000
Electrical life(times)
3000
3000
3000
2000
2000
2000
Flying Arc Distance(mm)
≤50
≤50
≤50
≤100
≤50
≤50

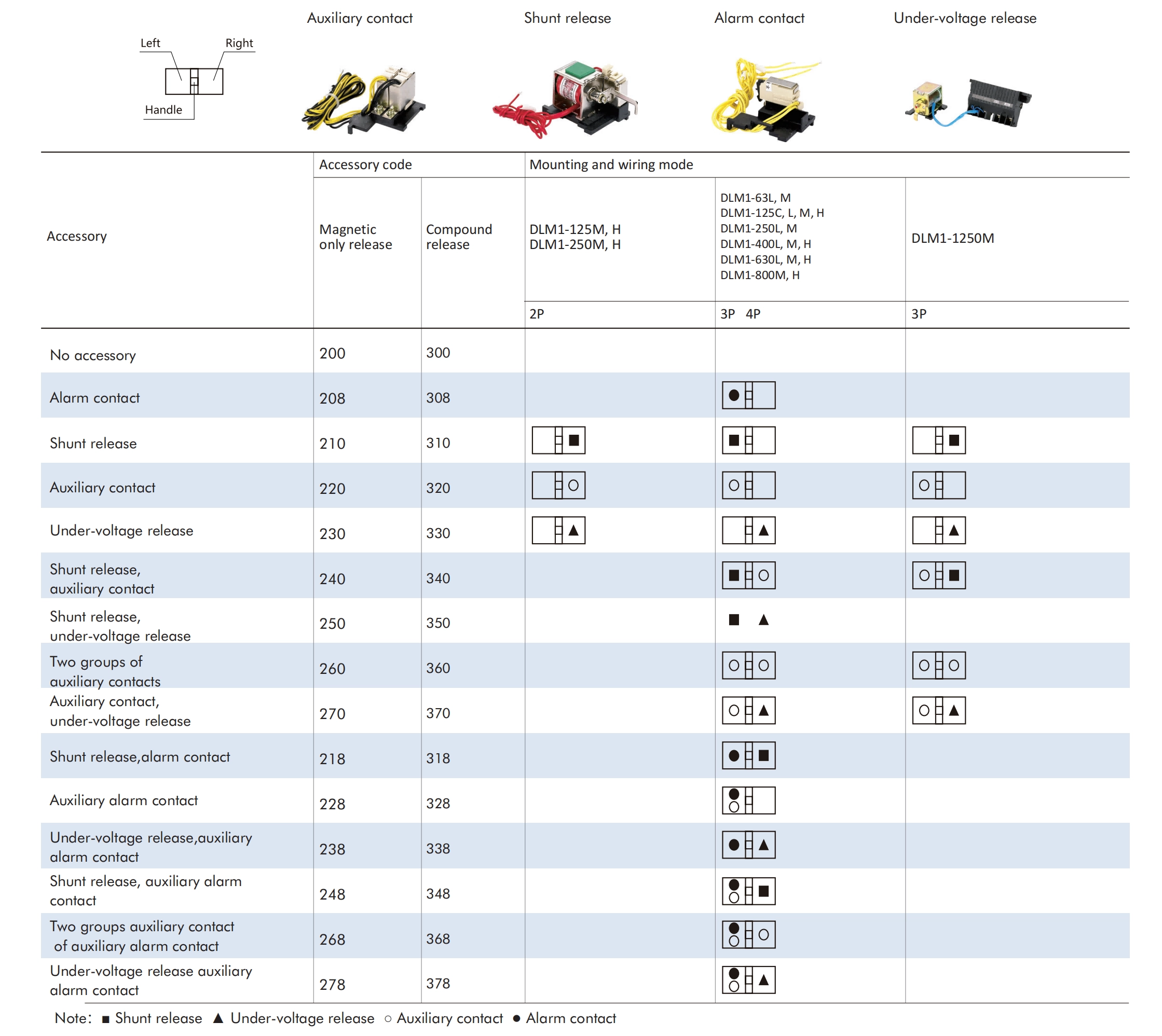

Accessories
Dimensions

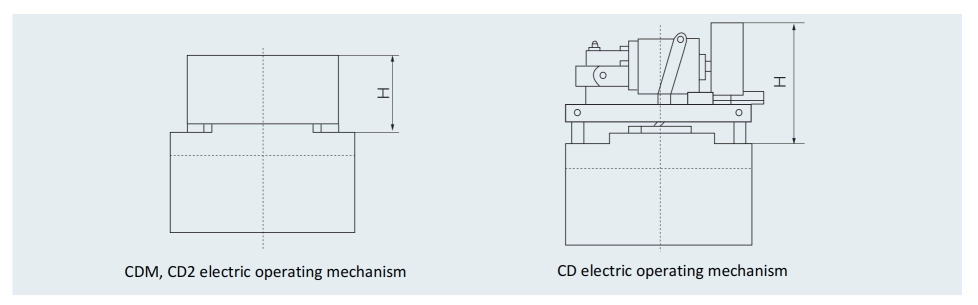

Height of electric operating mechanism
Model of circuit breaker for operating mechanism
DLM1-63L, M
DLM1-100L, M, H
DLM1-225L, M, H
DLM1-400L, M, H
DLM1-630L, M, H
DLM1-800M, H
Height(mm)
CD2 motor type
90.5
89.5
93
142
153
146
CD motor type
–
–
–
141
141
150

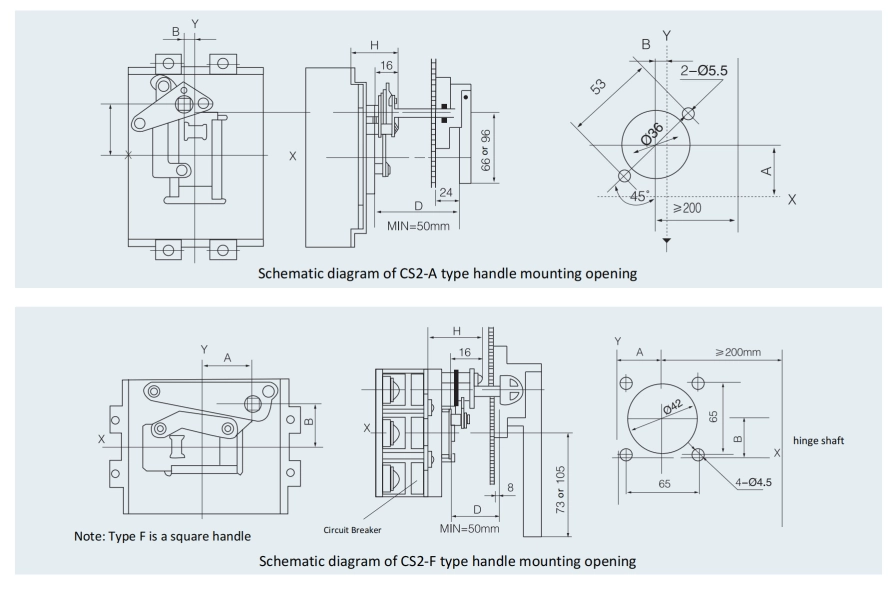

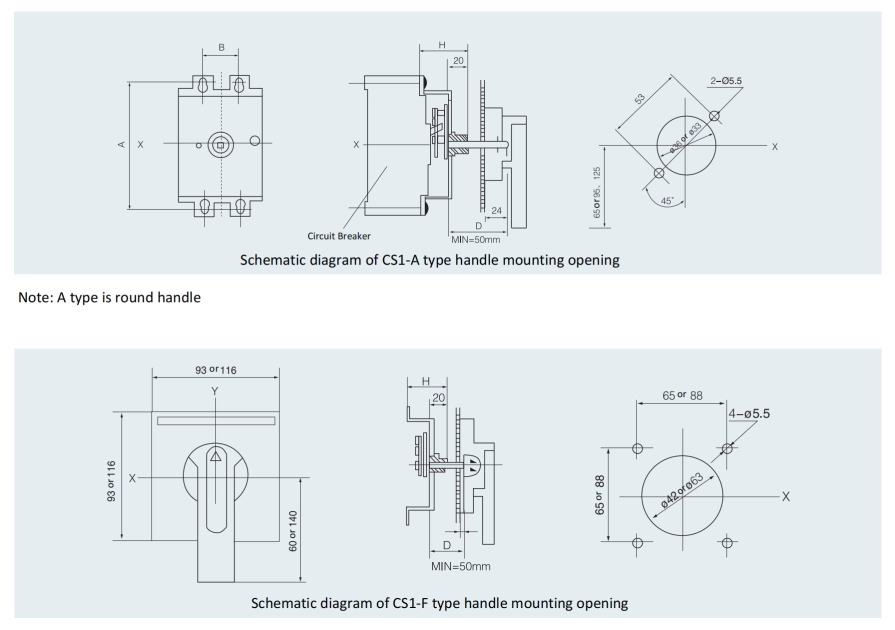

External accessories installation method and its overall dimensions
Note:
It is recommended to purchase the operating mechanism from our company at the same time when ordering. If the user purchases by himself, due to the quality of other companies of the operating mechanism of all the adverse consequences arising from the quality of the company will not be responsible for the company.
Installation of external accessories and their external dimensions
External Accessories
Model of External Accessories
Matching Circuit Breakers
Manual Mounting Dimensions (mm)
Mounting Method
H
A
B
A
B
Metal
Plastic
/
/
/
/
Manual Operating Mechanism
CD2-100/M
DLM1-100
49
69
104
30
/
/
Vertical Mounting
CD2-225/M
DLM1-225
55
72
143
35
/
/
CD2-400/M
DLM1-400
76
110
194
138
/
/
CD2-630/M
DLM1-630
83
110
200
168
/
/
CD2-100/M
DLM1-100
46
/
35
30
/
/
Vertical Mounting
CD2-100/M
DLM1-100
46
/
37
30
/
/
Horizontal Mounting
CD2-225/M
DLM1-225
48
/
35
31
/
/
Vertical Mounting
CD2-225/M
DLM1-225
48
/
45
32
/
/
Horizontal Mounting
CD2-400/M
DLM1-400
61
/
65
15
/
/
Vertical Mounting
CD2-630/M
DLM1-630
61
/
60
15
/
/
Solenoid
CDM3-100/M
DLM1-100
91
/
103.5
30
117.5
90
CDM3-225/M
DLM1-225
101
/
143
35
155
105
Electric Motor
CD-400/M
DLM1-400
141
/
226
132
/
/
CD-630/M
DLM1-630
140
/
226
132
/
/
Note: DLM1L-100~630 and DLM1E-100~630 are both universal DLM1-100~630 external accessories.
