Overview

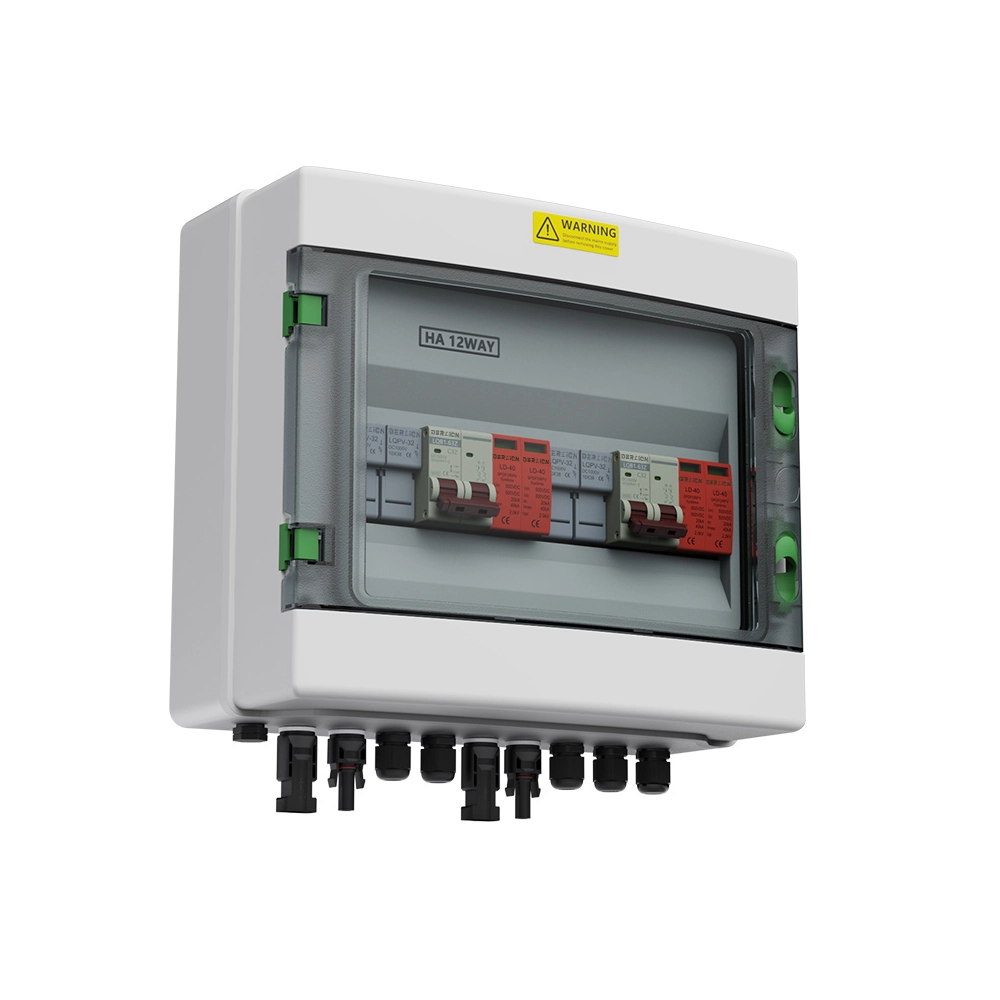

The DLCBP/2-2 PV Combiner Box (2 in 2 out, DC 500V/DC 1000V) is designed for safe and efficient DC power distribution in solar photovoltaic (PV) systems. Installed between solar panels and the inverter, it combines the input from PV modules and provides reliable circuit protection, ensuring stable and secure operation of the solar power system.
Flexible Configuration
The PV combiner box supports multiple configurations, including DC fuses, DC surge protective devices (SPD), and DC circuit breakers or DC load disconnect switches. Optional components such as monitoring modules and anti-reverse diodes are available to meet specific application requirements.
High Reliability
Built with an IP65-rated enclosure, the DLCBP/2-2 offers excellent waterproof, dust-proof, and UV-resistant performance. It undergoes strict high and low temperature tests, ensuring reliable operation under harsh outdoor conditions.
Convenient Installation
The enclosure is made of high-quality plastic and ABS materials, offering durability and flame retardance. With a compact design and simple wiring layout, it allows for quick installation and easy maintenance.
Technical and Safety Compliance
Designed in strict accordance with CGC/GF037:2014 – Technical Specification for Photovoltaic Junction Equipment, this PV combiner box provides users with a safe, efficient, and aesthetically designed DC protection solution.
It is suitable for single MPPT inverters with a maximum input voltage of DC 500V or DC 1000V, supporting 2 PV input channel and 2 output channel. The polyvinyl chloride (PVC) engineering enclosure ensures flame resistance, temperature stability, impact resistance, and UV protection, offering dependable performance in a wide range of photovoltaic applications.
