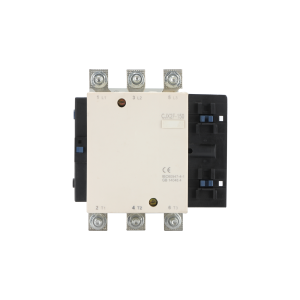

CJX2 series AC contactors (hereinafter referred to as contactors) are mainly used in circuits with AC 50Hz or 60Hz, rated insulation voltage of 1000V, and rated current up to 800A at rated working voltage of 380V under AC-3 use category.
The AC contactors can be used to connect and disconnect circuits over long distances and can be combined with suitable thermal overload relays to form electromagnetic starters to protect circuits where operational overloads may occur.

The contactor can be used for frequent starting and control of AC motors.

The contactor is suitable for frequent starting and control of AC motor. The product conforms to GB14048.4 and IEC60947-4-1 standards.

Overview

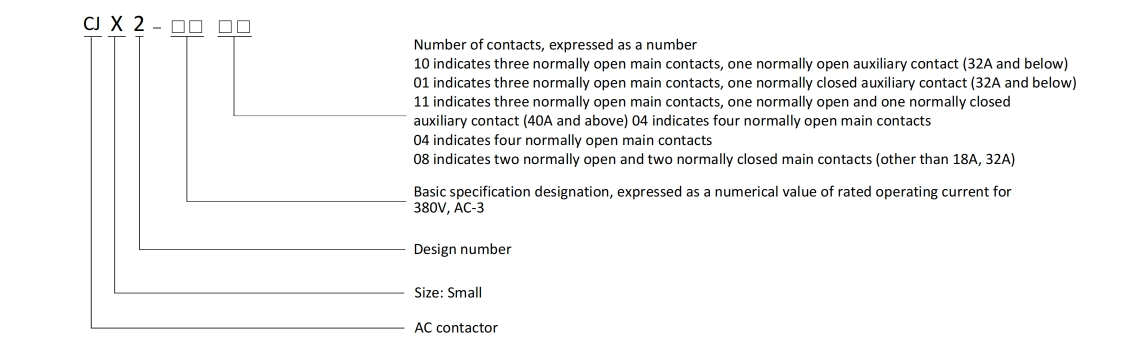

Product Model

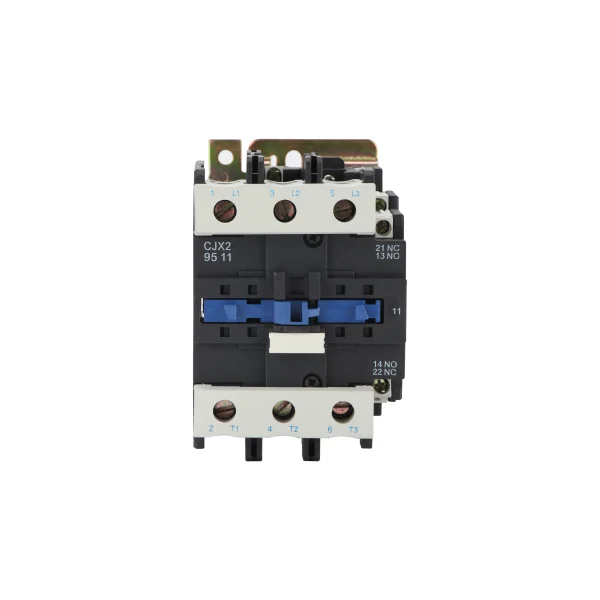

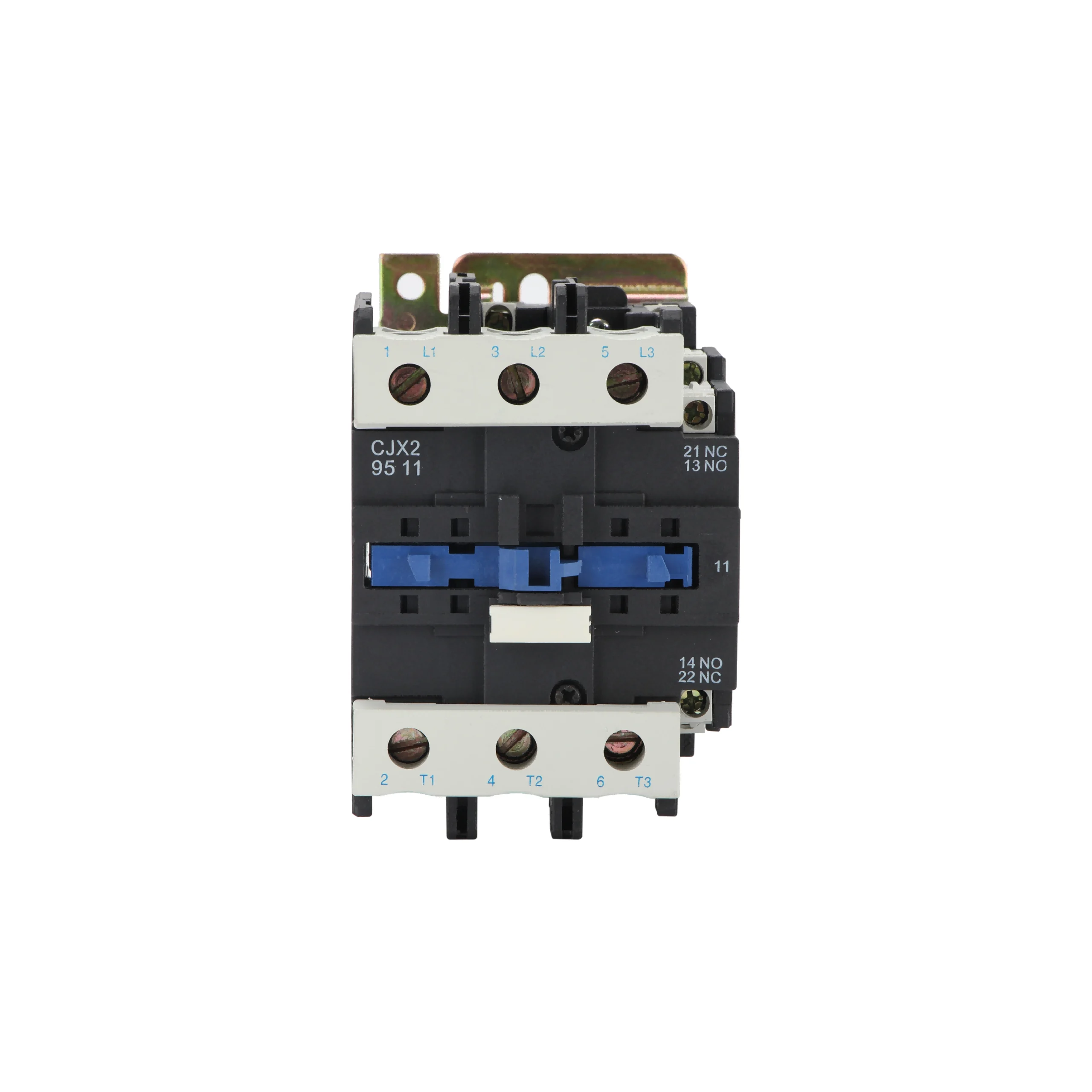

CJX2 AC Contactor

The Normal Working Conditions And Installation Conditions
  • Ambient air temperature: -5℃ +~40℃ , the average value of which does not exceed +35℃ within 24 hours.
  • Altitude: not more than 2000m.
  • Atmospheric conditions: maximum temperature of +40 ℃ , the relative humidity of the air does not exceed 50%; at lower temperatures can be allowed to have a higher relative humidity, such as +20 ℃ up to 90%, due to temperature changes occasionally produce condensation should take special measures.
  • Pollution level: Class 3
  • Installation category: Class III.
  • Installation conditions: The inclination of the mounting surface to the vertical is not more than ± 5°.
  • Shock and vibration: The product should be installed and used in a place where there is no significant shaking, shock and vibration.
Characteristics of the structure
  • It can be assembled with auxiliary contact set, air delay head, thermal relay and other accessories by block mounting method, and combined into a variety of derived products.
  • AC contactor has the characteristics of small size, light weight, low power consumption, high life, safety and reliability.
  • The contactor body has a pair of normally open or normally closed auxiliary contacts by default for 32A and below, a pair of normally open and normally closed auxiliary contacts for 40A and above, and the product body does not have auxiliary contacts for 115A and above, and F4, F8 auxiliary contacts or air delay head and other accessories can be added.
  • In addition to screw mounting, AC contactors can also be mounted with 35mm [CJX2-09 ~ 95], 75mm [CJX2-40 ~ 95] and 2*35mm [CJX2-115 ~ 170] standard clamp rails

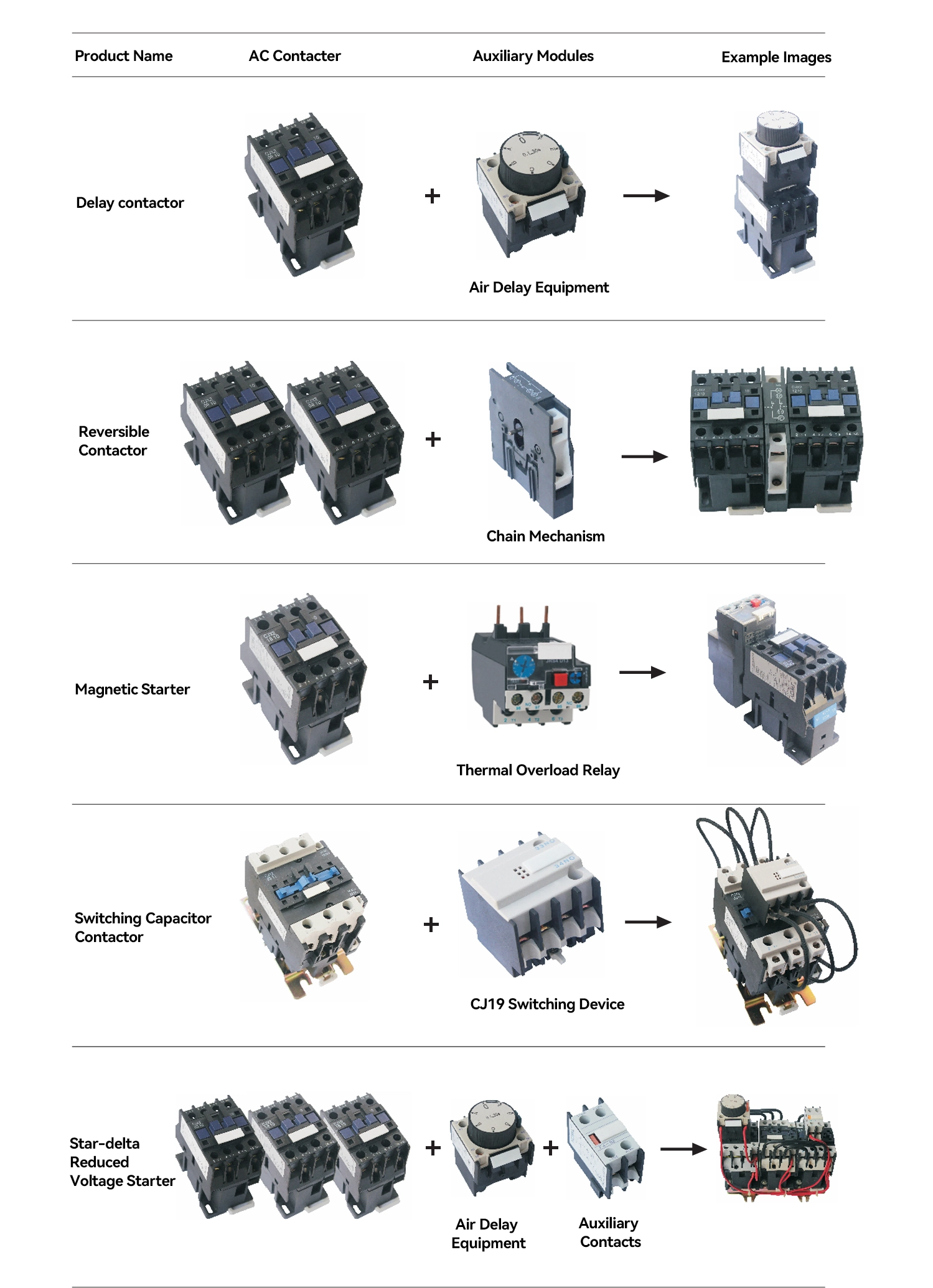

Accessories of CJX2 Series AC contactor

Technical Parameters

Main parameters and technical performance
Model CJX2-09 CJX2-12 CJX21-18 CJX2-25 CJX2-32 CJX2-40 CJX2-50 CJX2-65 CJX2-80 CJX2-95
Rated Operating Current (A) 380V AC-3 9 12 18 25 32 40 50 65 80 95
AC-4 35 5 7.7 8.5 12 18.5 24 28 37 44
660V AC-3 7 9 12 18 21 34 39 42 49 49
AC-4 15 2 3.8 4.4 7.5 9 12 14 17.3 21.3
Conventional Heating Current (A) 20 20 32 40 50 60 80 80 110 110
Rated Insulation Voltage (V) 690 690 690 690 690 690 690 690 690 690
Motor Power of Controllable Three-phase Squirrel Cage (kW)
AC-3
220V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
380V 4 5.5 7.5 11 15 18.5 22 30 37 45
660V 5.5 7.5 10 15 18.5 30 33 37 45 55
Electrical Life (10,000 times) AC-3 100 100 100 100 80 80 60 60 60 60
AC-4 20 20 20 20 20 15 15 15 10 10
Mechanical Life (10,000 times) 1000 1000 1000 1000 800 800 800 800 600 600
Model of Matching Fuse RTI6-16 RT16-20 RT16-25 RT16-32 RT16-50 RT16-63 RT16-63 RT16-80 RT16-100 RT16-125
Average Power Consumption of Coil (VA) (20℃) 50Hz Sunction 76 76 76 110 110 230 230 230 230 230
Holding 94 9.4 9.4 11 11 32 32 32 32 32
Single Weight (kG) 3P+NO/NC 0.33 0.33 0.35 0.52 0.55 1.22 1.22 1.22 1.42 1.42
4P(4NO) 0.33 0.33 0.52 1.32 1.32 1.32 1.59 1.59
4P(2NO2NC) 0.33 0.33 0.52 1.37 1.37 1.37 1.65 1.65

Installation Dimension

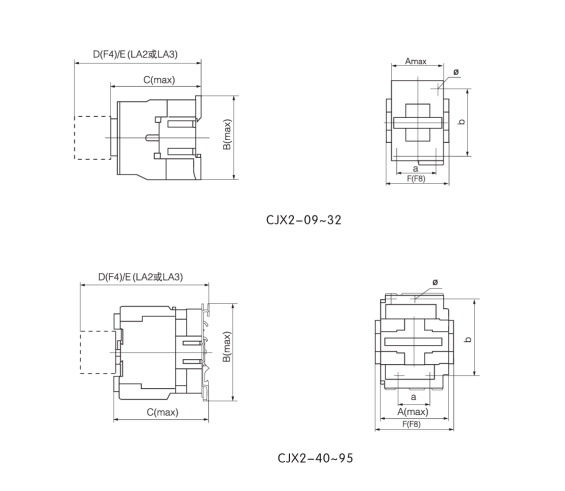

Installation DimensionDimension of CJX2 AC Contactor-1
Model Amax Bmax Cmax Dmax Emax Fmax a b D
CJX2-09~12 47 76 82 115 135 73 35 50/60 4.5
CJX2-18 47 76 87 120 140 73 35 50/60 4.5
CJX2-25 57 86 95 128 149 83 40 50/60 4.5
CJX2-32 57 86 100 133 154 83 40 50/60 4.5
CJX2-4011~6511 77 129 116 147 167 103 40 100/110 6.5
CJX2-40004~65004 85 129 115 150 168 113 40 100/110 6.5
CJX2-40008~65008 85 129 126 150 168 111 40 100/110 6.5
CJX2-8011~9511 87 129 127 155 175 113 40 100/110 6.5
CJX2-80004~95004 97 129 123 155 175 123 40 100/110 6.5
CJX2-80008~95008 97 129 134 155 175 123 40 100/110 6.5

Notes:

f: Minimum distance required to take out each coil.
x1: Flying arc distance determined by operating voltage and breaking capacity.
